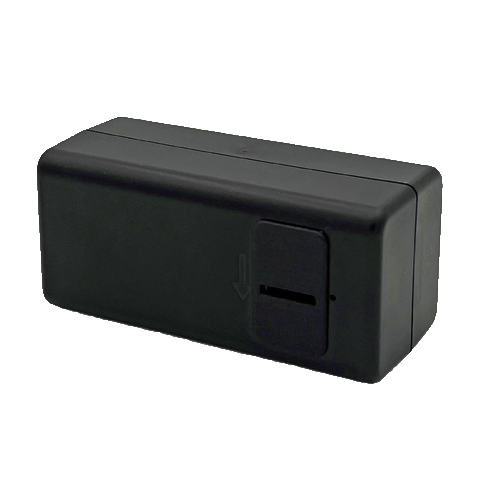

Wireless EnOcean sensor EnoSense® People Counter for people counting, housing in black, front side

People counting with EnoSense® People Counter

This easy-to-install sensor for counting people passing by is powered by two AA batteries and transmits its data wirelessly with every counting event. The sensor is attached to the door frame above the door, preferably on the corridor side, using a double-sided adhesive pad (included). Depending on the color of the frame, the sensor is available in black, white or beige housing. The information is transmitted via the EnOcean wireless standard. The sensitivity and transmission frequency of the telegrams are fixed.

Count people

The sensors at a glance

The EnoSense® Desk uses special technology to count people entering or leaving rooms without image recognition.

Motion / PIR, bidirectional
Motion / PIR, bidirectional
Detection width: approx. 1.0 m Detection area in front of the sensor: approx. 0.5 m Detection area behind the sensor: approx. 0.2 m Mounting height: typ. 2,4 m
Count people

EnoSense® People Counter - How it works

This video shows how the EnoSense® People Counter works. It has been attached to the outside of the frame above the door using the double-sided adhesive pad (shown on the left). On the right side you can see the screen of a demo application. On the left you can see the raw value (1 byte). This counts consecutively +/-. After 255, it continues with 0 in the positive direction. After 0 comes 255 in the negative direction. The absolute number of people is evaluated in the application in your cloud, not in the EnoSense People Counter. This is the most sensible solution for calculating the count values, especially if there are several doors and therefore several people counters in a room.
Image link

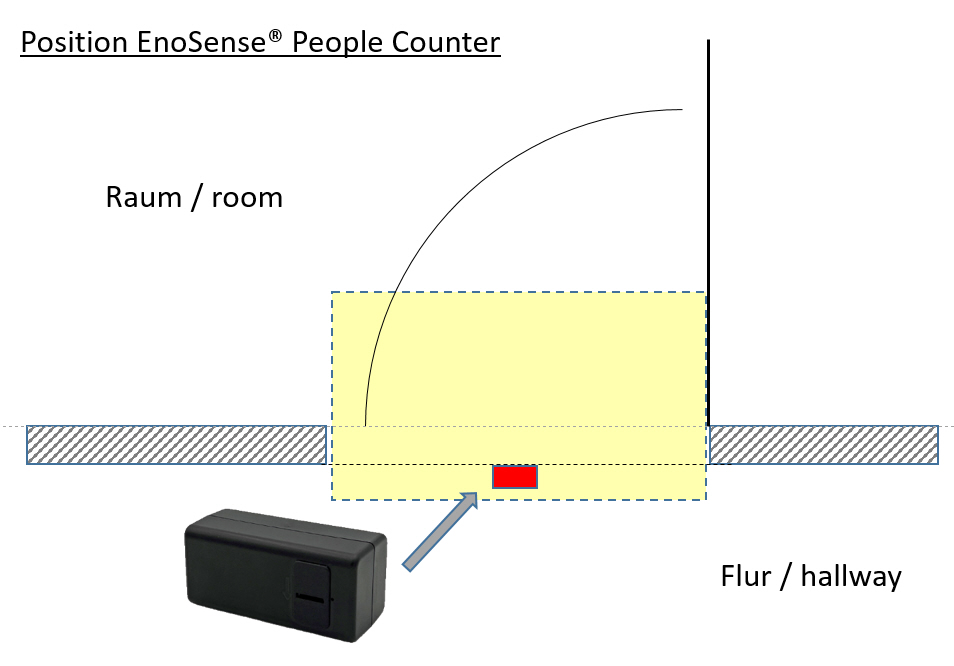

Positioning EnoSense® People Counter

Ideally, the EnoSense® People Counter is attached to the frame on the outside of a room above the door. This prevents incorrect counting by people passing by as far as possible. The typical installation height is between 2.2 m and 2.5 m.

Schnittstelle Funk

EnOcean

EU: 868,3 MHz

FCC: 902 MHz

ARIB: 928 MHz

Weitere Schnittstellen

Servicetaster

Sensorik

PIR zur Personenzählung, keine Kamera

Spannungsversorgung

2x AA, VARTA Industrial, im Lieferumfang

Umgebungsbedingungen

Betriebstemperatur: +5 °C .. +40 °C

Lagertemperatur: -20 °C .. +70 °C

Luftfeuchtigkeit: 0 .. 95 %

Schutzklasse: IP20

Abmessungen und Gewicht

36 x 37 x 80 mm

94 g

DolphinView / Softwaretool EnOcean GmbH

Hinweis:

Sie gelangen auf die Seite des Herstellers und müssen sich dort für den Download registrieren.

Note:

You will be taken to the manufacturer's website where you must register for the download.

The following devices / options are currently available from us:

Bestellnummer

Order number

Artikelbezeichnung

Article name

Zulassung

Approval

Farbe

Color

12432

AL-436-00-868 EnoSense® People Counter, CE, 868,3 MHz, beige

CE

beige

beige

12452

AL-436-00-868 EnoSense® People Counter, CE, 868,3 MHz, black

CE

schwarz

black

12465

AL-436-00-868 EnoSense® People Counter, CE, 868,3 MHz, white

CE

weiß

white

12466

AL-436-00-902 EnoSense® People Counter, FCC, 902 MHz, beige

FCC

beige

beige

12467

AL-436-00-902 EnoSense® People Counter, FCC, 902 MHz, black

FCC

schwarz

black

12468

AL-436-00-902 EnoSense® People Counter, FCC, 902 MHz, white

FCC

weiß

white

12760

AL-436-00-928 EnoSense® People Counter, JAPAN, 928 MHz, beige

ARIB

beige

beige

12604

AL-436-00-928 EnoSense® People Counter, JAPAN, 928 MHz, white

ARIB

weiß

white

12759

AL-436-00-928 EnoSense® People Counter, JAPAN, 928 MHz, black

ARIB

schwarz

black

12518

AL-436-00-921 EnoSense® People Counter, NCC, 921 MHz, white

NCC

weiß

white

12537

AL-436-00-921 EnoSense® People Counter, KC, 921 MHz, white

KC

weiß

white

12791

AL-436-00-868 EnoSense® People Counter, SINGAPORE, 921 MHz, white

IMDA

weiß

white

12538

AL-436-00-868 EnoSense® People Counter, CHINA, 868,3 MHz, white

CCC

weiß

white
